Spent a lot of time on detailed drawings of prefab components for the new boat.
Not being naturally gifted as a carpenter I wanted to complete the thinking process and draw all details on the plywood before putting the saw in it.

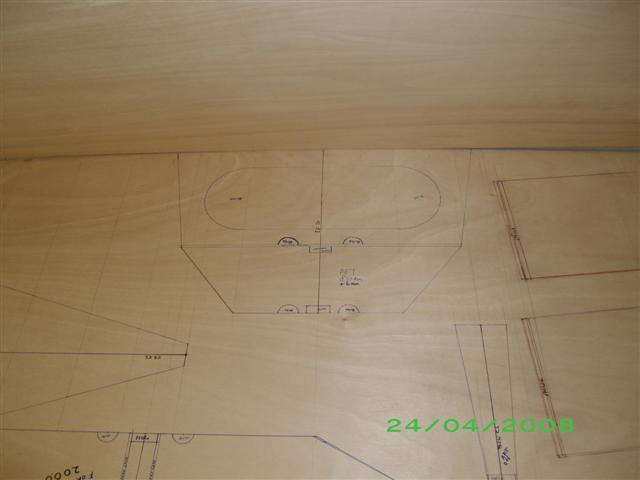

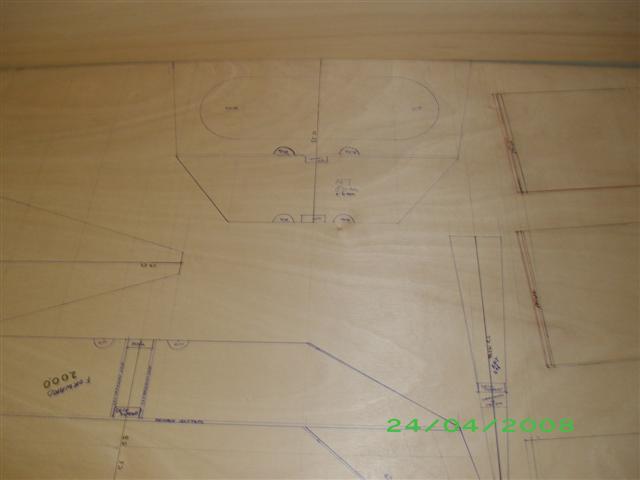

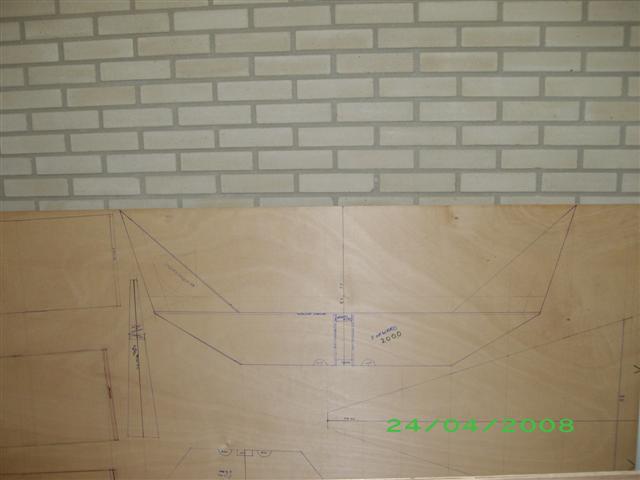

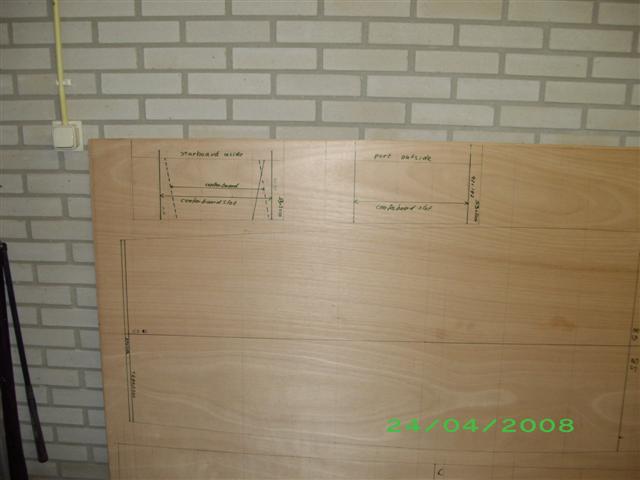

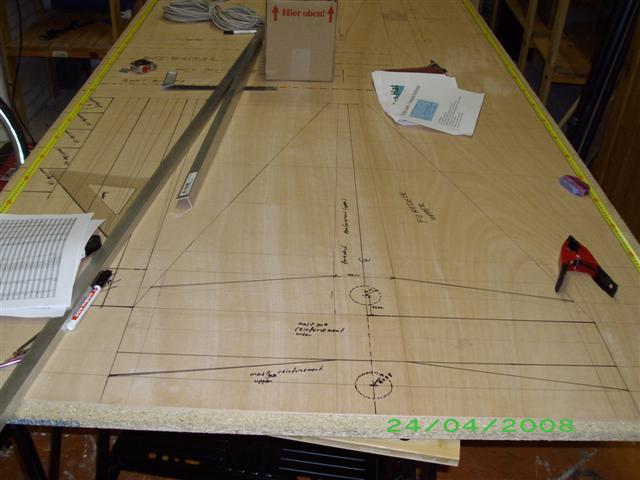

Since I already had the topper rig, I did not have to make or buy mast, sail, rudder or centerboard. Bought all the epoxy, paint and most of the hardware beforehand (oarlocks, pintles and gudgeons, nuts and bolts).  20080424_IMGP0009.JPG Daggerboard case drawings  20080424_IMGP0010.JPG Main bulkhead (top and bottom)  20080424_IMGP0011.JPG Mast bulkhead (top and bottom)  20080424_IMGP0012.JPG  20080424_IMGP0013.JPG Flat foredeck with external stiffeners as an experiment |
