20080618 |
Time to close the lid.

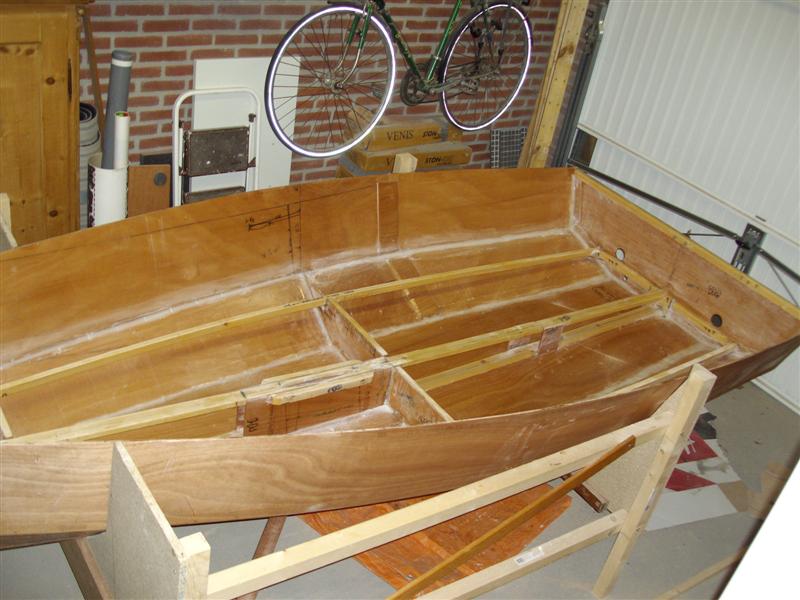

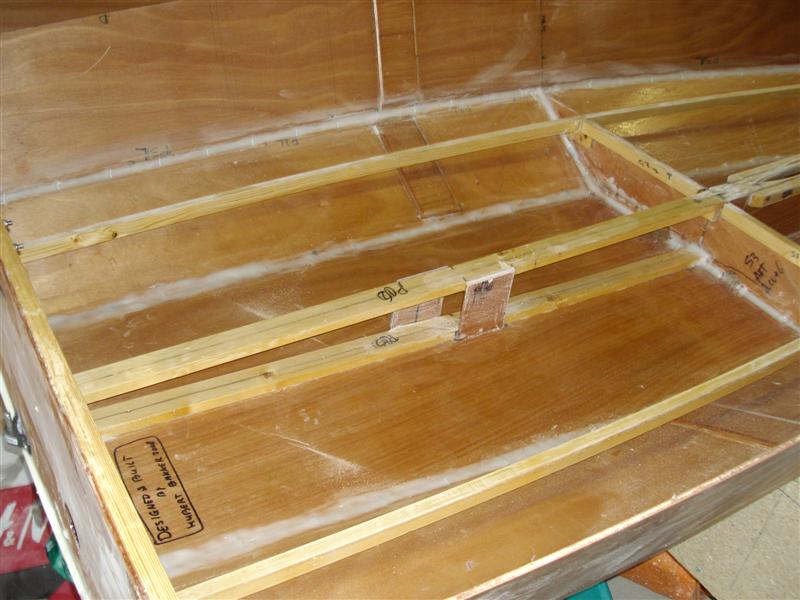

Previously I added extra supports to reinforce the king plank near the daggerboard slot.
I also added some ply supports to bridge the distance between the main bulkhead and the transom.
Finally I buttered the king plank, stringers and fillets of the upper chines with epoxy glue and
screwed the double bottom on.

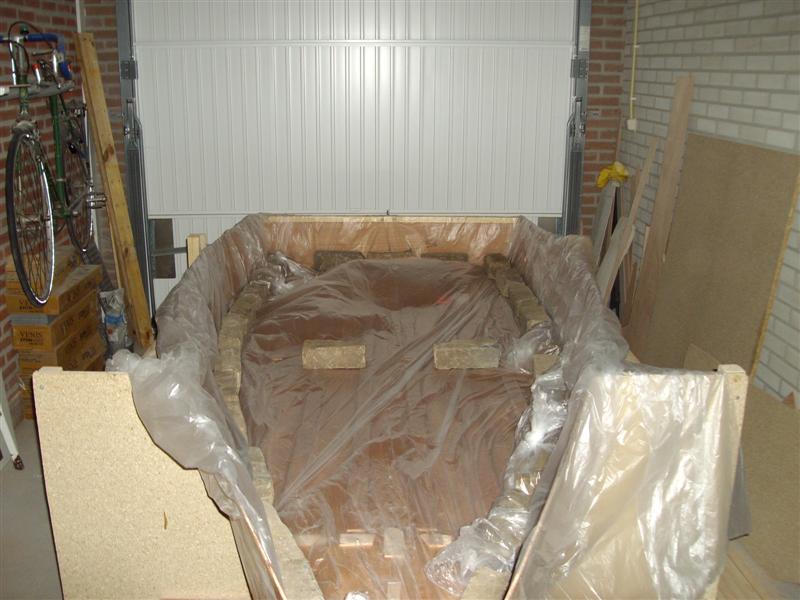

The last thing was to weigh down the deck with stones all around the chine fillets and over the stringers.
Keeping fingers crossed for now.
 20080618_IMGP0168.JPG  20080618_IMGP0169.JPG  20080618_IMGP0170.JPG  20080618_IMGP0171.JPG |
