20170806

Today I finished cutting of the panels and bulkheads with the circular saw. I cut about 2mm from the outer edge of each panel to avoid cutting off too much. With the 8mm okoume plywood it is easy to plane the edges down to the pencil lines.

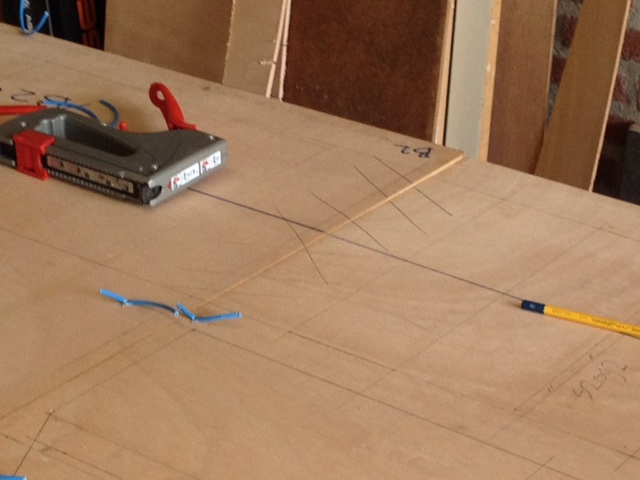

20170806_IMG_0075.JPG Connecting the dots on the bottom panels.

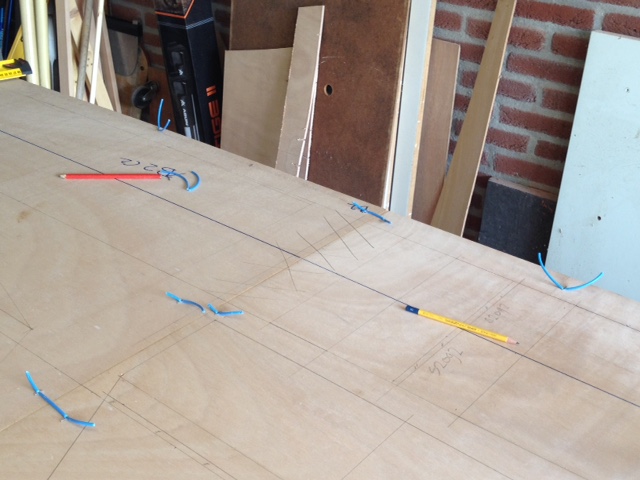

20170806_IMG_0076.JPG Fixated the plywood sheets with staples. The blue wire is 220v electricity wire.

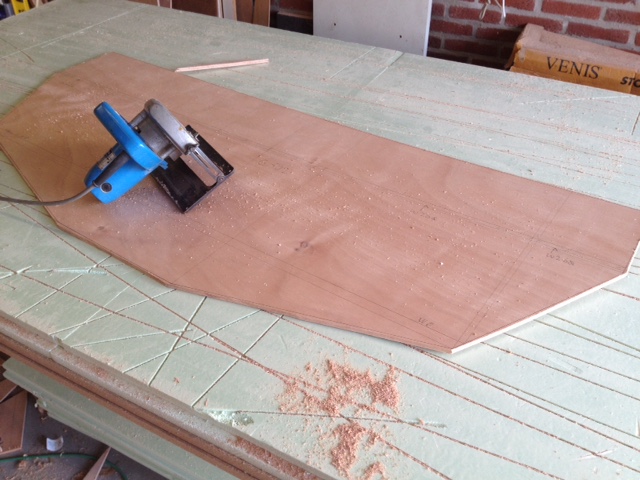

20170806_IMG_0077.JPG Rough cutting the bulkheads with the circular saw. Keeping 2-3mm clear of the pencil lines.

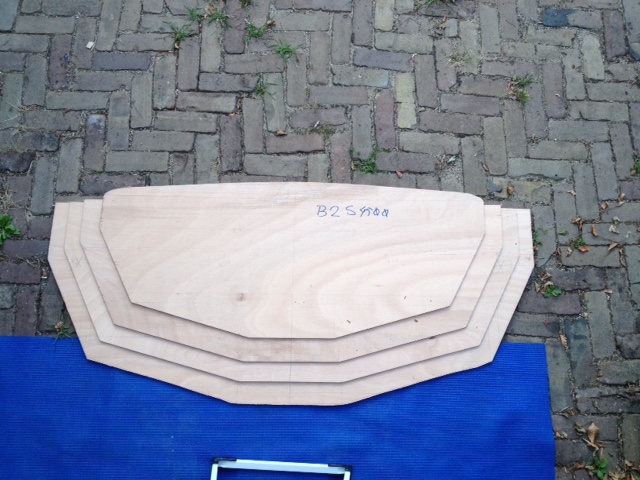

20170806_aft_bulkheads.jpg Aft bulkheads lined up on an imaginary blue waterline.

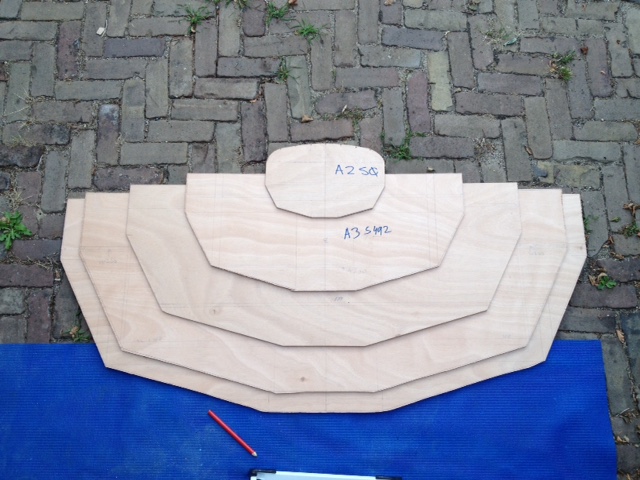

20170806_fwd_bulkheads.jpg Forward bulkheads.
