20170424

Spent a lot of time thinking about the deck layout. On the one hand it is tempting to create a structure with side benches like the CLC Southwester Dory or the Calendar Islands Yawl by Clint Chase. But a fixed structure is not only a lot of work, it solves only one problem. From my experience with TooPhat I learnt that versatility is more important than a hermetically executed design exercise. So I chose the open plan approach similar to Ross Lillistone's Phoenix III design. The slatted seats and floorboards provide a nice platform for sailing but can also be set up as a sleeping platform at a comfortable height, or they can be taken out altogether.

ItemDistance from bow
Mast Bulkhead100
Daggerboard Case Forward160
Daggerboard Case Aft210
Aft bulkhead370

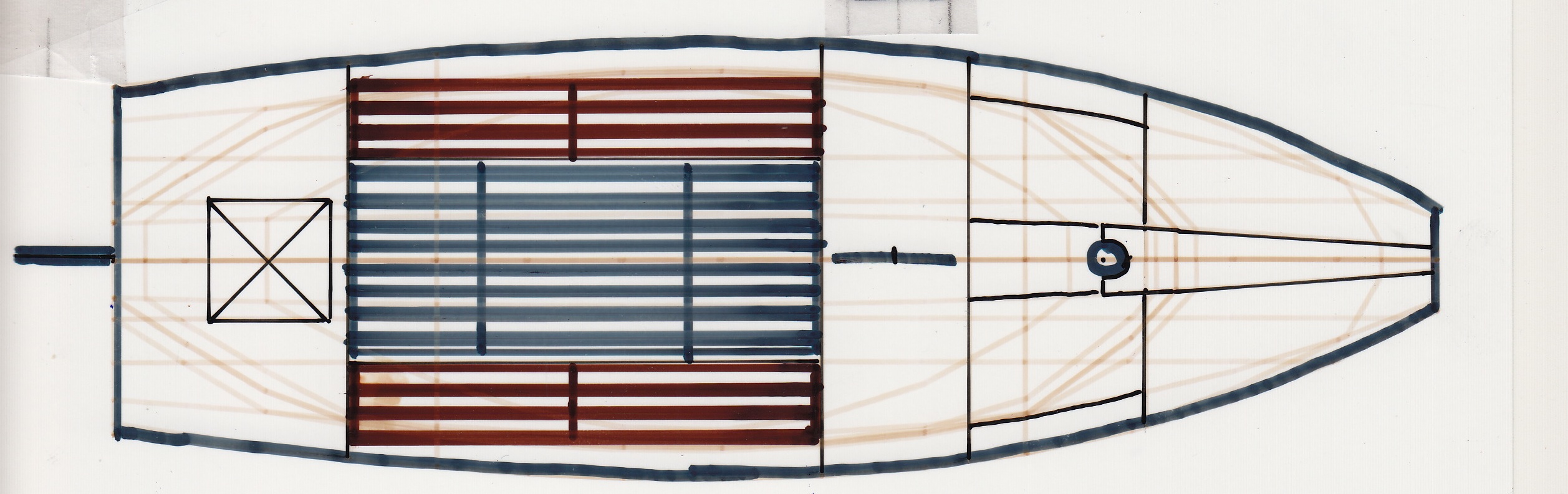

20170424_H4_deck.jpg Deck plan

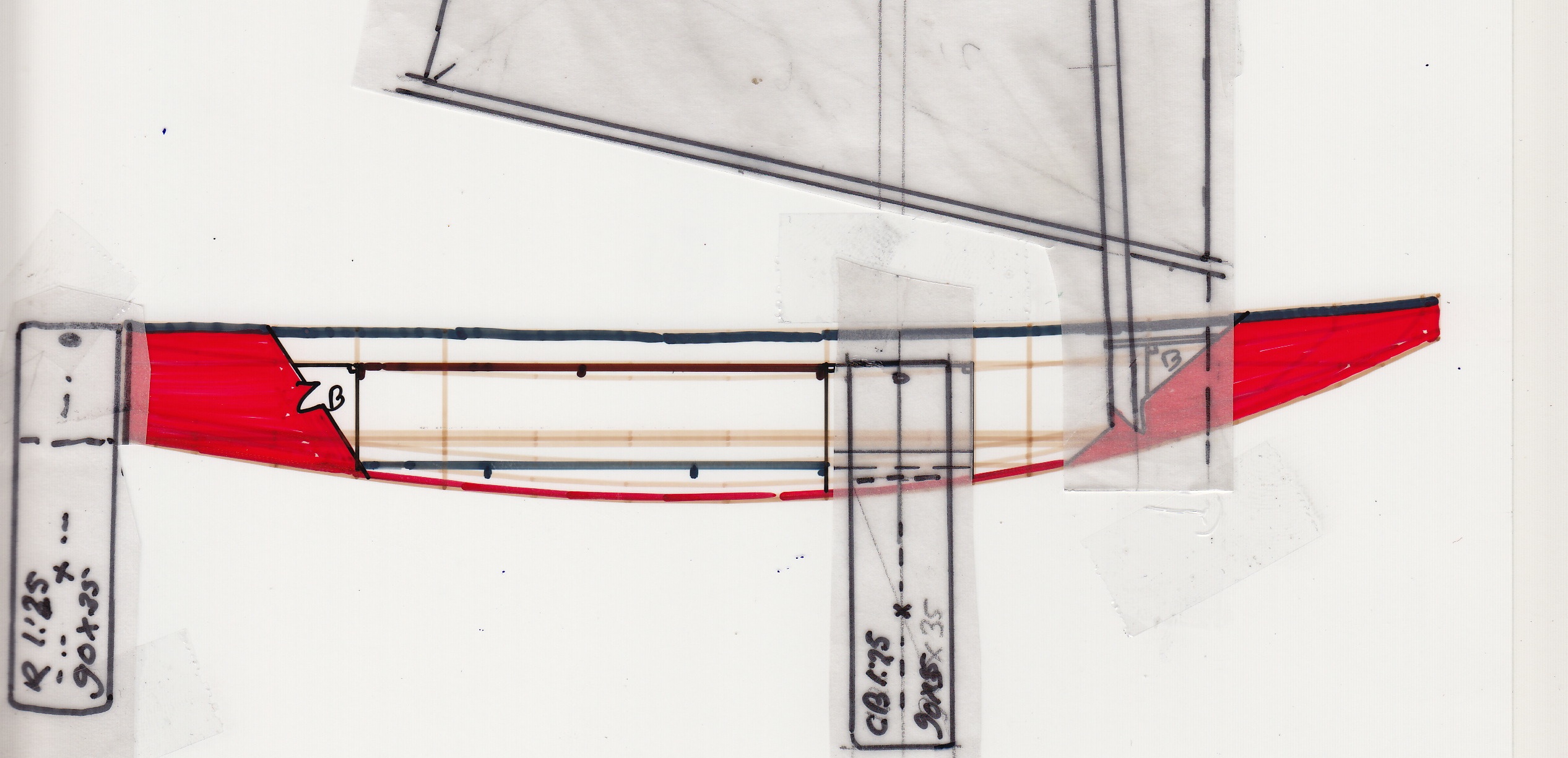

20170424_H4_prof.jpg Profile with mast bulkhead at 100cm from bow.

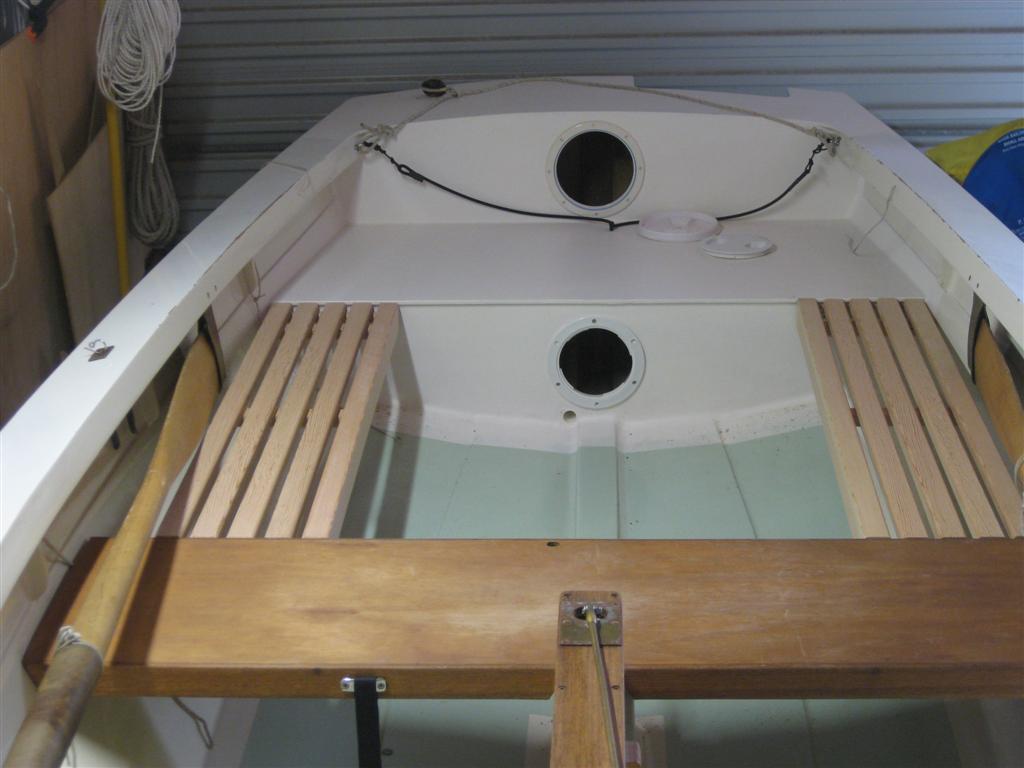

20170424_Sideseats003.jpg Open plan layout of Phoenix III wit removable slatted seats
20170424_ciy.jpg The side tanks of the Calendar Islands Yawl form the basis of a sleeping platform.

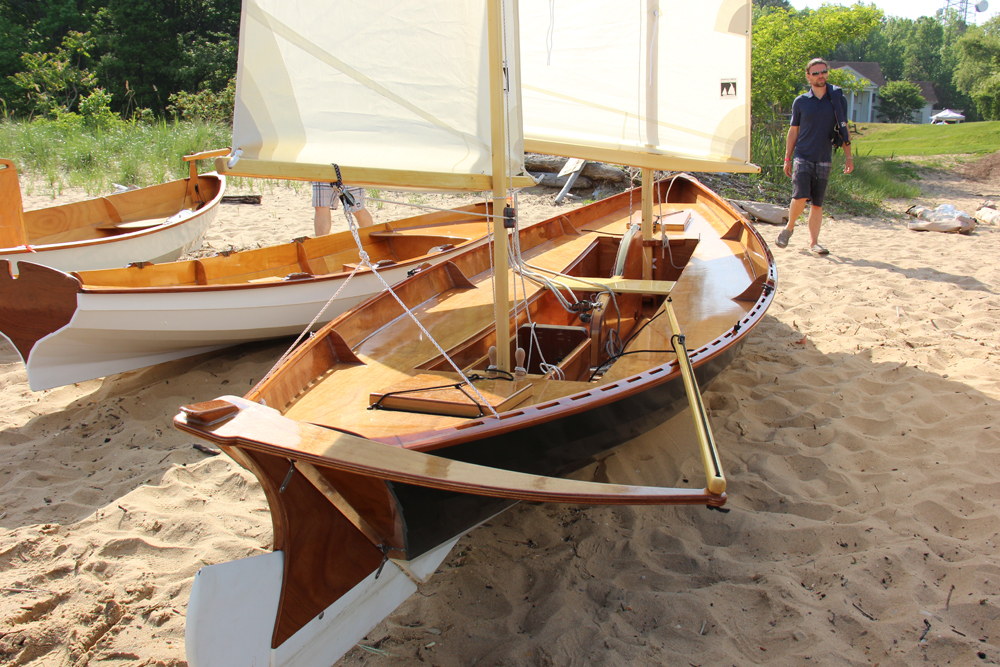

20170424_clc_southwester.jpg The CLC Southwester Dory is another take on an expedition boat with a sleeping platform.
